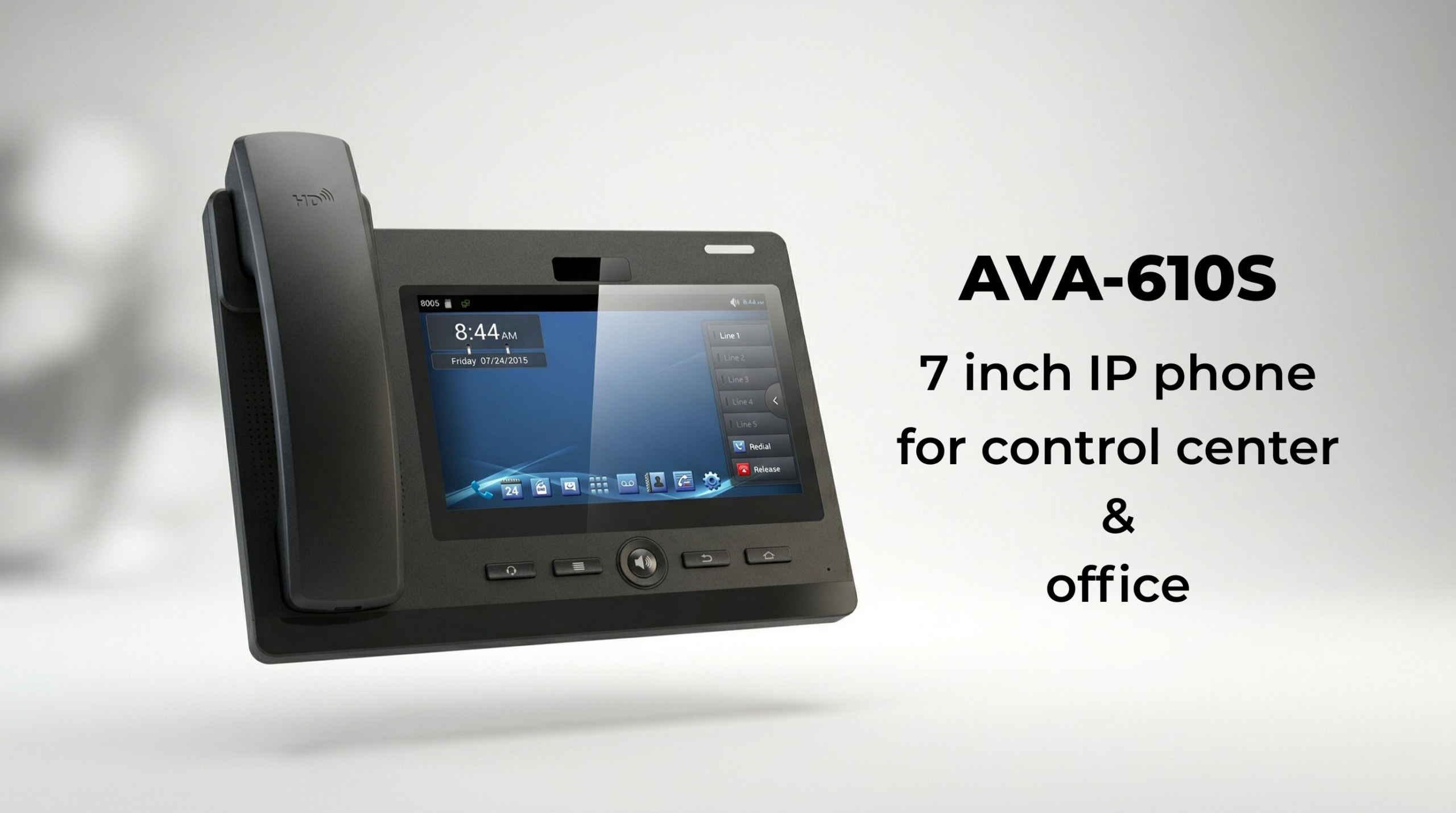

The AVA-610S is a premier smart desktop terminal that seamlessly integrates professional audio, high-definition video, and versatile applications into one powerful device. Powered by the Android operating system, it offers an exceptionally smooth and intuitive user interface.
Featuring a vibrant 7-inch color touchscreen and comprehensive connectivity—including USB 2.0, TF card, and HDMI ports—the AVA-610S is designed to provide enterprise users with a unified communication hub. It is the perfect flexible solution for desktop communication, supporting scalable value-added services that grow with your business.
Features
- Customizable Virtual Keys: Supports 4 dynamic pages with up to 28 DSS keys per page. A total of 112 programmable keys can be configured for Lines, BLF, or Speed Dial, maximizing workflow efficiency.
- High-Resolution 7-Inch Touchscreen: The professional TFT color display provides a rich visual experience and effortless, fingertip-controlled operation.
- Gigabit Ethernet & PoE: Equipped with self-adaptive 10/100/1000Mbps network ports for high-speed data transmission and simplified installation via PoE.
- Integrated Video Security: Supports H.264 video decoding. Users can bind IP cameras or video doorbell to monitor security feeds and perform remote door unlocking directly from the main screen.
- System Compatibility: Fully compatible with leading SIP-based IP PBX, Softswitch, and IMS platforms, including Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, and Avaya.
Specification
| Display | 7 inch color touch screen (Resolution 1024 x 600) |
| Keypad | 5 buttons (Home / Return) |
| Power | 5V /2A or PoE class 3 |
| Operation Temp. | 0°C~+45°C |
| Dimension | Desktop (Angle 1) : 254.8 x 154.9 x 202.8 mm Desktop (Angle 2) : 254.8 x 167.8 x 182.4 mm Wall mount: 254.8 x 118.4 x 182.4 mm |
| Color | Black |
| Protocol | SIP 2.0 over UDP/TCP/TLS, RTP/RTCP/SRTP |
| Codec | H.264, G7.11a/u, G.722 |
| Installation type | Desktop or wall mount |
Basic function
| HD Voice | 20 SIP Lines |
| HD Video (Local 720P / Remote 1080P) | Video frame rate: 5~30fps |
| Ethernet Power (PoE) | Remote video full-screen display mode |
| 7-inch 1024×600 Color touch screen | Video calling |
| Handset / Hands-free / Headset mode | Built-in camera |
| Intelligent DSS key (Virtual buttons) | Video preview |
| Power adapter (Optional) | Echo cancellation (AEC) |
