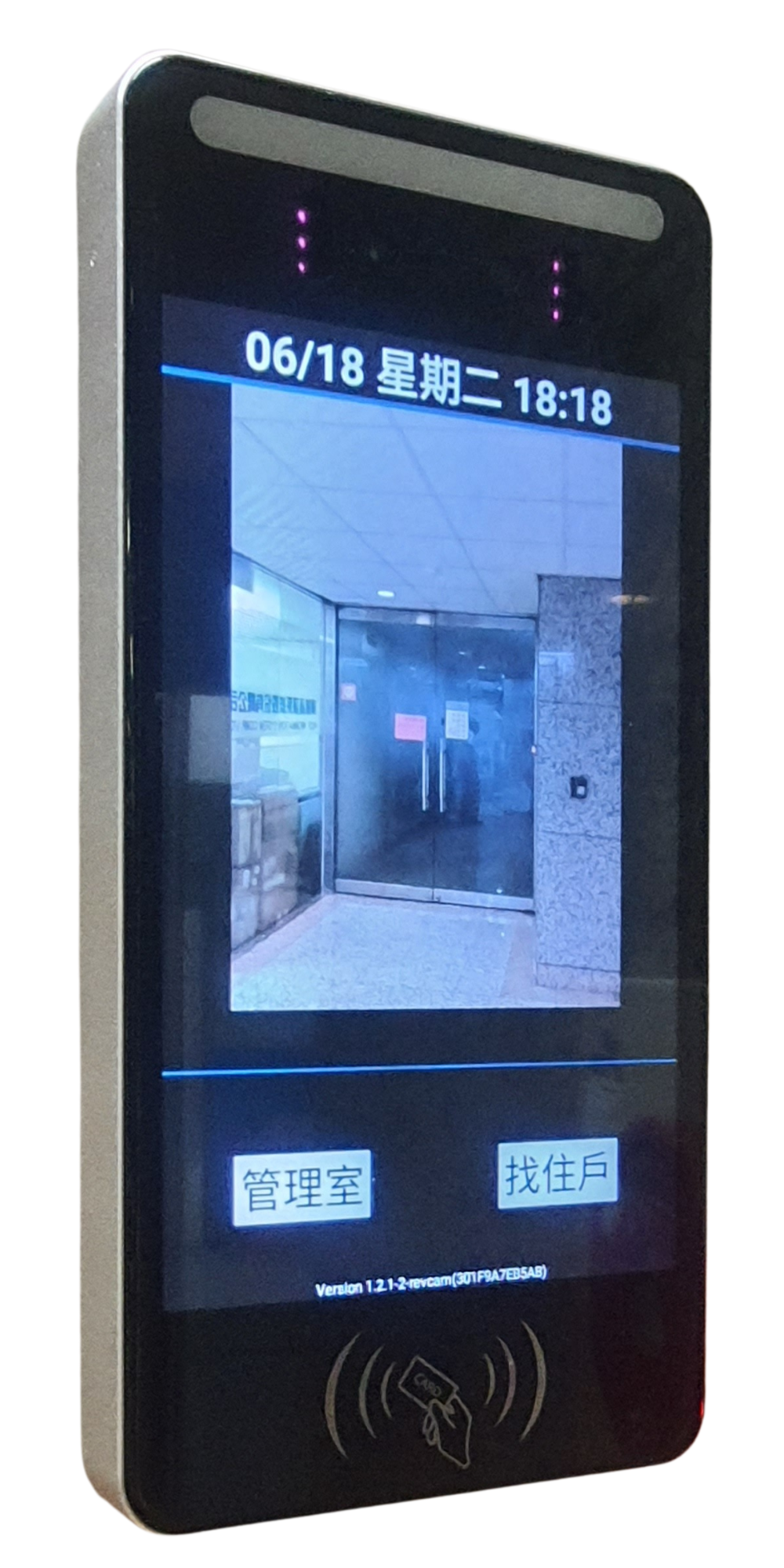

The DP-338 is a versatile, high-performance SIP intercom designed to be the perfect gatekeeper for both residential communities and modern office buildings. Featuring a stunning 8-inch high-resolution touch display, it provides an intuitive, hierarchical navigation system that guides visitors to the right contact without the need for complex directories.
Crafted for reliability and intelligence, the DP-338 supports optional Face Recognition and QR Code access, making it a future-proof solution for contactless entry. With its dual-lens camera and powerful lighting system, it ensures absolute clarity and security, day or night. Whether managed through a central monitoring station or the VBELL Cloud App, the DP-338 delivers a seamless, premium access experience.
Features
- Next-Gen Interaction: A vibrant 8-inch (800×1280) HD touch panel with a user-friendly, hierarchical menu. Visitors can easily find residents by floor and unit number without prior instructions.
- Superior Visual Clarity: Built-in 2MP dual-lens camera with WDR (Wide Dynamic Range) technology. Supported by 6 IR LEDs and 20 white light LEDs, it captures clear, full-color images even in total darkness.
- Flexible Access Control:
- Standard: Built-in RFID (Mifare) reader.
- Optional: Advanced Face Recognition and QR Code scanning for secure, keyless entry.
- Professional SIP Connectivity: Fully compatible with SIP protocols, ensuring smooth integration with major IP-PBX systems like Panasonic, Avaya, NEC, and Grandstream.
- Smart Security Monitoring: Features two digital inputs for door sensors and exit buttons. The system can trigger automatic alarms for “door-held-open” events, preventing unauthorized entry.
- Cloud Mobile Access: Integrated with the VBELL App, allowing users to receive HD video calls and unlock doors remotely from anywhere in the world.
- Simplified Installation: Supports PoE to reduce wiring costs and simplify deployment for system integrators.
Specification
| Display | 8 inch touch screen (Resolution: 800 x 1280) |
| Camera | 2 megapixels, dual lenses |
| Operation system | Android |
| Protocol | SIP, RTSP, ONVIF |
| Codec | H.264, G7111 |
| Power | PoE(802.4af) |
| RFID | Build-in RFID (MiFare) |
| Operation Temp. | -5°C~+45°C |
| Dimension | 165(H)x95(W)x36(D) mm |
| Option | RS-485 / RS-232 interface, QR code, Facial recognition |
| Interface | Build-in Digital input (DI) and Digital output (DO) |
| Installation type | Flush mount |
